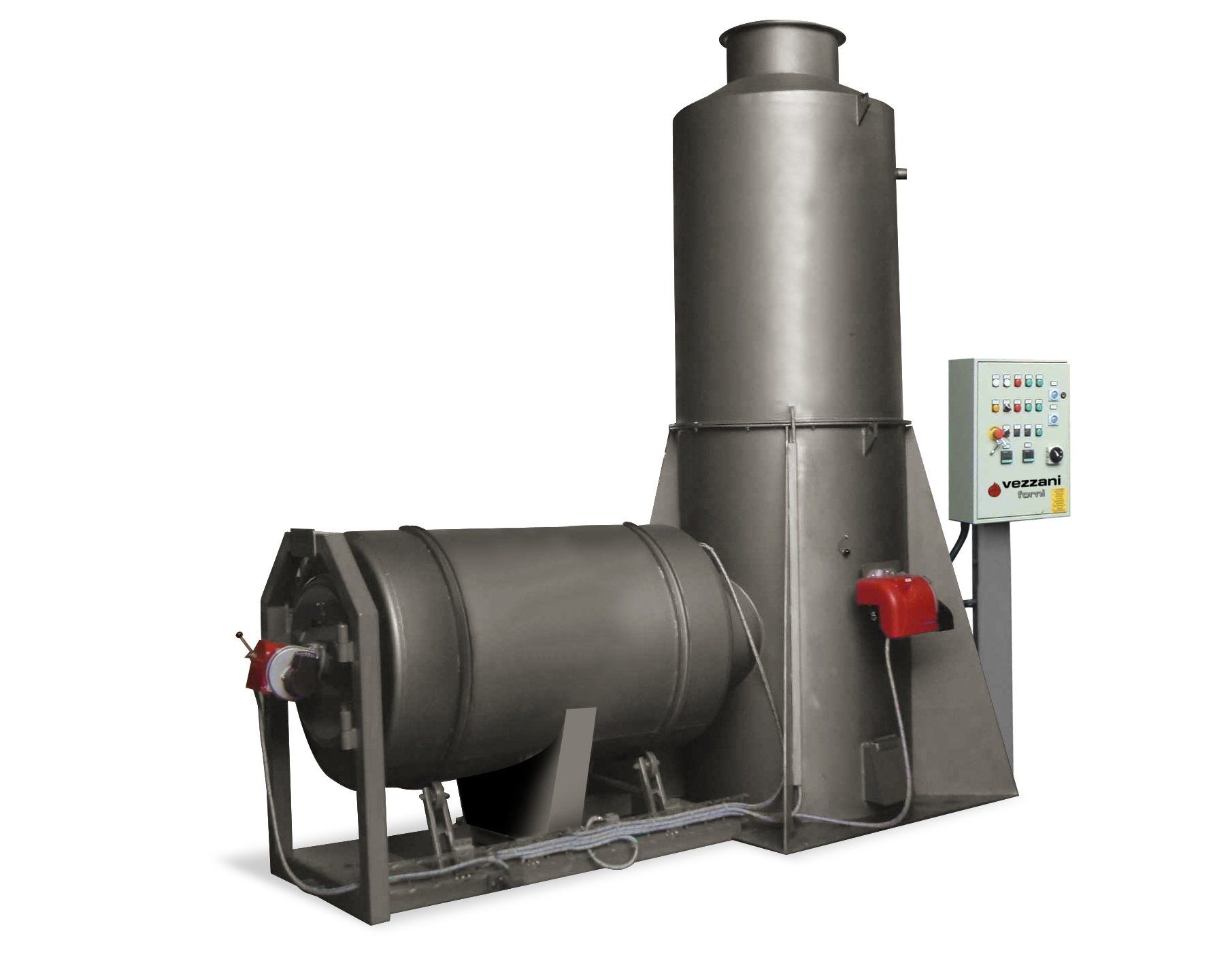

RK incinerators
The plants of the series “RK” are incinerators with a rotating combustion chamber and a static post-combustion chamber, studied for the thermal destruction of high humidity waste.
The furnaces of RK model are equipped with a rotating combustion chamber that facilitates the mix of the material and improving the flame exposure, accelerating the incineration process.
Thanks to this process, our plants can easily dispose of waste with a high humidity.
RK incinerator technical specifications
| RK200 | RK500 | RK1000 | RK1500 | a | |
|---|---|---|---|---|---|
| Combustion chamber’s volume | 9.00 | 19.00 | 6.00 | 19.00 | I |
| Combustion chamber burner’s thermal power | 1,1 | 1,7 | 2,2 | 3 | MW |
| Postcombustion chamber burner’s thermal power | 0,6 | 1 | 1,8 | 2,7 | MW |
| Incineration temperature | 800 - 900 | 800 - 900 | 800 - 900 | 800 - 900 | °C |
| Postcombustion chamber temperature | 850 - 1100 | 850 - 1100 | 850 - 1100 | 850 - 1100 | °C |
| Destructive capacity | 200 | 500 | 1.00 | 9.20 | kg/h |
| LHV – waste lower heating value | 3 | 3 | 3 | 3 | kWh/kg |
| Combustion chamber’s external diameter | 1,9 | 2,4 | 2,9 | 3 | m |
| Combustion chamber’s lenght | 5 | 6 | 6 | 7,5 | m |
| Tilt | 2 | 2 | 2 | 2 | % |
| Rotations per minute | 0,7 | 0,6 | 0,5 | 0,6 | rpm |
| Postcombustion chamber external diameter | 1,8 | 2,5 | 3,3 | 4 | m |
| Chimney’s internal diameter | 350 | 450 | 550 | 650 | mm |
| Chimney’s minimum height | 5 | 5 | 7 | 7 | m |
| Electrical power | 5 | 7 | 10 | 12 | kW |
Accessories
Upon request, we can provide the following accessories:
- Automatic loading system
- Energy recovery systems
- Treatment systems
- Emission monitoring systems
- Remote –over the net -assistance device
